10kW, 15kW and 25kW three-phase hybrid inverters

More power.
More possibilities.
Built for three phase.

Bring high-capacity solar generation, compatible battery storage and intelligent energy management together with iStore’s advanced three-phase hybrid inverter range.

Three output options Battery-ready hybrid technology 10-year warranty
Explore the range View specifications
3Φ Three phase
10kW
15kW
25kW

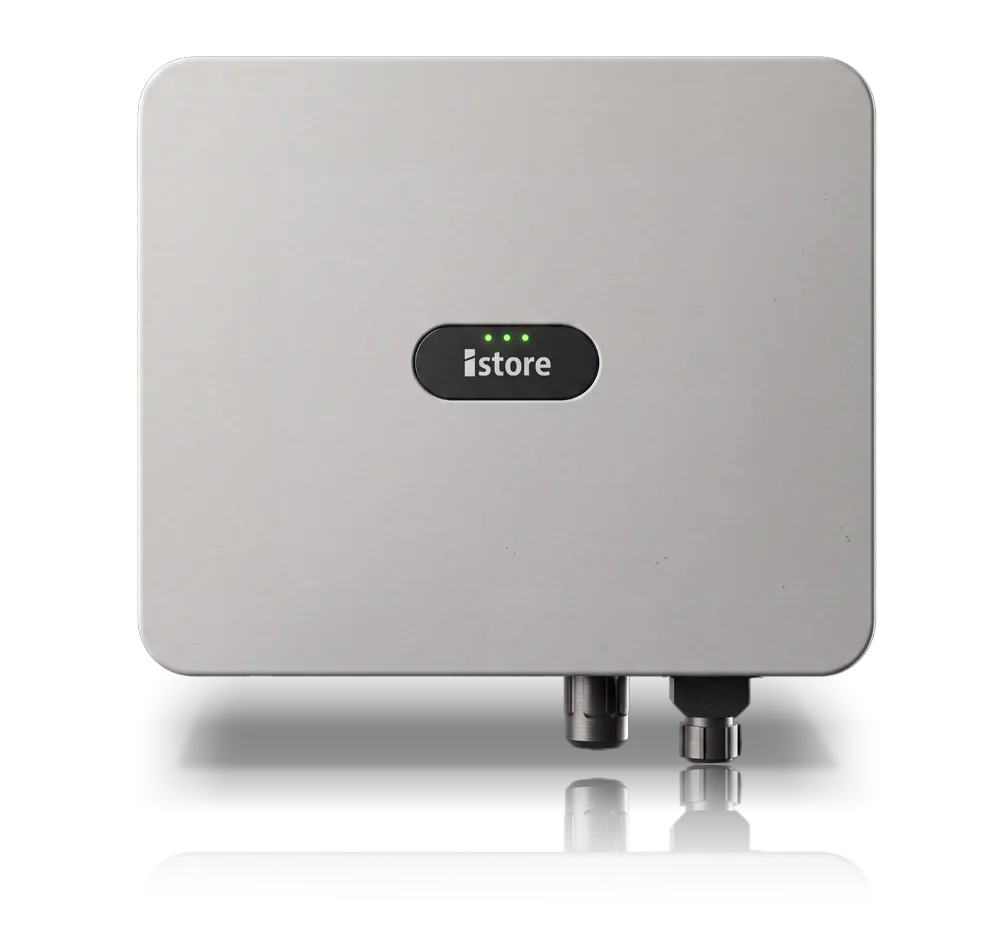

iStore three-phase hybrid inverter
IS-HYB three-phase range
3 Output models
98.4% Maximum efficiency
62.5kWp Maximum PV capacity
High-capacity three-phase energy

Three-phase power.
One integrated hybrid system.

The iStore three-phase hybrid range brings solar generation, compatible battery storage and intelligent energy management together across 10kW, 15kW and 25kW output options.

Each model shares the same battery-ready architecture, intelligent protection and connected monitoring platform, allowing an accredited installer to select the appropriate output for the property.

Connected three-phase architecture Solar, storage and three-phase output
Hybrid system
PV input MPPT 1
PV input MPPT 2

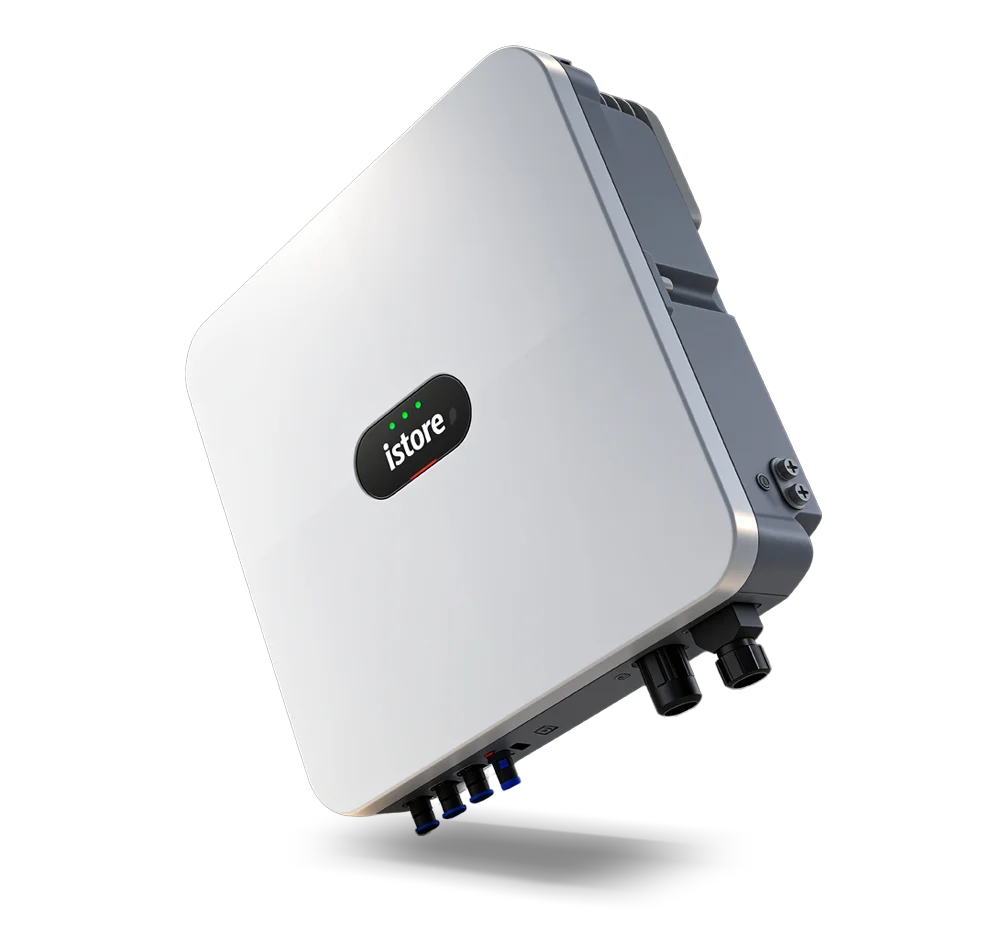

iStore three-phase hybrid inverter
Compatible storage 5-60kWh
Intelligent hybrid control
L1 Phase one
L2 Phase two
L3 Phase three
Available rated output
10kW 15kW 25kW
Three-phase grid connection

Designed for three-phase properties

Each inverter supplies energy through a three-phase grid connection, supporting appropriately designed residential and light-commercial energy systems.

01
Three output choices

10kW, 15kW and 25kW models

Select an inverter output suited to the property’s electrical capacity, solar-array design, expected consumption and applicable network requirements.

02
Battery-ready hybrid technology

Compatible storage within one energy system

Connect compatible iStore battery storage from 5-60kWh to capture surplus solar generation and make stored energy available for later household use.

03

Which model is right for your property? An accredited installer must assess the electricity connection, switchboard, network requirements, solar-array capacity, battery configuration and intended operating requirements.

High-capacity solar input

More solar capacity.
More opportunity across the day.

Each inverter supports recommended PV capacity equal to up to 250% of its rated output, giving an accredited installer greater flexibility when designing higher-capacity solar systems.

Two independent MPPT trackers and up to four PV inputs can accommodate separate solar strings, roof orientations and differing operating conditions while remaining within the inverter’s electrical limits.

Two independent MPPT trackers

Each tracker manages its connected solar strings independently within the inverter’s specified voltage and current limits.

01

Up to four PV string inputs

Two string inputs per MPPT provide greater flexibility for professionally designed solar arrays.

02

Greater generation opportunity

Additional panel capacity can support stronger generation during mornings, afternoons and periods of lower solar irradiance.

03
200-1,000V MPPT operating range
1,100V Maximum input voltage
200V Start-up voltage
Solar-array potential Designed to accommodate more PV
Up to 250%
Maximum supported PV power
62.5 kWp

Available with the 25kW three-phase model

Model 01 10kW
Rated output PV capacity
25kWp 250%
Model 02 15kW
Rated output PV capacity
37.5kWp 250%
Model 03 25kW
Rated output PV capacity
62.5kWp 250%
Solar tracking 2 MPPT
PV connections Up to 4 inputs
Input current per MPPT Up to 30A

The maximum input current is 30A per MPPT when using two strings and 20A when using a single string. All connected strings must remain within the inverter’s voltage, current and system-design limits.

Understanding PV capacity: Connecting additional panel capacity does not increase the inverter’s rated AC output. Final PV capacity depends on string design, connected battery storage, inverter limits, network requirements and applicable Australian standards.

High-capacity battery-ready performance

Store more solar.
Scale storage around demand.

Connect compatible iStore battery storage from 5-60kWh and coordinate stored energy with solar generation and three-phase household demand.

Two battery terminals and high-power charging support flexible storage configurations across the 10kW, 15kW and 25kW inverter range.

Compatible energy storage Flexible battery-ready architecture
2 terminals
Compatible battery capacity
5-60 kWh

Configure compatible storage around the property’s energy requirements.

Storage terminal Battery string 1
iStore three-phase hybrid inverter
Hybrid energy control
Storage terminal Battery string 2
Maximum battery charging power
Single battery string 21kW
Two battery strings 25kW
Maximum battery discharge power Matched to inverter capability
10kW model 9.999kW
15kW model 16.5kW
25kW model 25kW
Battery operating voltage range 600-980Vdc
Flexible storage capacity

Compatible with 5-60kWh battery systems

Configure compatible iStore storage around the property’s energy consumption, solar generation and professionally assessed storage requirements.

01
Dual storage connections

Two battery terminals for greater flexibility

Two compatible battery strings can be incorporated to support higher storage capacity and charging performance when required.

02
High-power charging

Up to 25kW maximum battery charging power

A compatible two-string battery configuration can support up to 25kW of maximum charging power, helping capture more available solar energy.

03
Coordinated hybrid operation

Solar, storage and three-phase demand working together

Intelligent hybrid management coordinates available solar, compatible battery storage and property energy consumption through one inverter platform.

04

Battery performance depends on system design: Final capacity, charging power and discharge performance depend on the inverter model, connected battery configuration, state of charge, operating conditions and accredited installer design.

Intelligent performance and protection

Efficient at every size.
Protected by intelligent design.

Every model in the range delivers up to 98.4% maximum efficiency together with intelligent solar management and integrated electrical protection.

Active arc-fault protection, shade mitigation, IP66 enclosure protection and Smart Air Cooling support dependable operation across higher-capacity three-phase systems.

Energy conversion High-efficiency performance across the range
Active
Maximum efficiency
98.4 %

Across all three models

10kW model 98.4%
15kW model 98.4%
25kW model 98.4%
Active protection AI AFCI
Solar optimisation Shade mitigation
Thermal management Smart Air Cooling
Enclosure protection IP66
Operating temperature -25 to +60°C
Maximum operating altitude 4,000m
Relative operating humidity 0-100% RH

Output derating may apply above specified temperature and altitude thresholds. Refer to the current installation documentation for operating requirements.

Active electrical safety

AI-powered arc-fault protection

Intelligent AFCI technology helps identify potentially dangerous electrical arcing within the solar system and initiate a protective response.

01
Shade-mitigation technology

Designed to recover more usable solar energy

MPPT multi-peak scanning helps identify a more productive operating point when partial shade creates multiple power peaks across a solar string.

02
Intelligent thermal management

Smart Air Cooling

Intelligent cooling helps regulate inverter temperature during higher-power operation while supporting dependable performance across changing operating conditions.

03
Installation durability

IP66-rated enclosure

Protection against dust and powerful water jets supports flexible indoor or outdoor installation when positioned according to the installation requirements.

04
Integrated surge protection

Additional protection for the solar system

The inverter includes Type II DC surge protection and AC surge protection compatible with Type II protection requirements.

Correct installation remains essential: Integrated protection features complement correct product selection, system design, electrical protection, commissioning and maintenance by an accredited solar installer.

Three output options

Choose the output.
Keep the same hybrid intelligence.

The range offers 10kW, 15kW and 25kW rated output options while maintaining the same battery-ready architecture, intelligent safety features and connected monitoring platform.

An accredited installer can determine the model suited to the property’s electricity connection, solar capacity, energy demand, battery requirements and network limitations.

Model 01
Three phase
Rated inverter output
10 kW
Recommended maximum PV power 25kWp
Battery discharge 9.999kW
Maximum efficiency 98.4%
IS-HYB-10000-3PH
Mid-range output
Model 02
Three phase
Rated inverter output
15 kW
Recommended maximum PV power 37.5kWp
Battery discharge 16.5kW
Maximum efficiency 98.4%
IS-HYB-15000-3PH
Model 03
Three phase
Rated inverter output
25 kW
Recommended maximum PV power 62.5kWp
Battery discharge 25kW
Maximum efficiency 98.4%
IS-HYB-25000-3PH
Model comparison

Key differences across the range

Shared hybrid platform
Specification
10kW model
15kW model
25kW model
Rated output power
9,999W
15,000W
25,000W
Recommended maximum PV power
25,000Wp
37,500Wp
62,500Wp
Maximum active power
9,999W
16,500W
27,500W
Maximum apparent power
9,999VA
16,500VA
27,500VA
Maximum output current at 400Vac
15.2A
25.2A
42.0A
Maximum battery discharge power
9,999W
16.5kW
25kW
Full-load MPPT voltage range
370-800V
410-800V
530-800V
Maximum efficiency
98.4%
98.4%
98.4%
European weighted efficiency
97.7%
98.0%
98.2%
Shared across all three models
2 MPPT trackers
Up to 4 PV inputs
5-60kWh battery capacity
Up to 25kW battery charging
AI AFCI protection
IP66 enclosure

Model selection requires professional assessment: A higher inverter rating is not automatically appropriate for every property. Selection depends on the electrical connection, network approval, switchboard capacity, solar-array design, battery configuration and expected energy demand.

Monitoring, communication and scalability

See more.
Connect more.
Scale the system further.

Connected monitoring provides greater visibility over solar generation, battery activity and energy use across the property.

Integrated WLAN, optional Ethernet, RS485 communication and multi-inverter capability support professionally designed higher-capacity energy systems.

iStoreHome monitoring Three-phase energy overview
System online
Connected energy visibility Monitor energy moving through the system
Solar Generation data
Three-phase inverter Managing energy
Property Consumption data
Battery Storage activity
Solar generation Current and historical visibility
Property consumption Energy-use information
Battery performance Charge and discharge activity
Operating status System information and events
Communication options
Integrated WLAN
Optional Ethernet
RS485

Available monitoring information depends on installed meters, compatible system components, communication hardware and final system configuration.

iStoreHome monitoring

Energy information within easier reach

View supported solar generation, property consumption, battery activity and operating information through the compatible iStoreHome monitoring platform.

01
Integrated connectivity

Built-in WLAN for connected monitoring

Integrated wireless connectivity supports connection to the compatible monitoring platform without requiring a separate wireless module.

02
Flexible communication

Optional Ethernet and RS485 integration

Optional Ethernet hardware and RS485 communication provide additional connection options for compatible equipment and professionally designed systems.

03
Multi-inverter capability

Scale to three paralleled inverters

Up to 3

Up to three compatible inverters can be configured in parallel with a compatible Smart String energy-storage system, subject to the current product documentation and professional system design.

Inverter Unit 01
Inverter Unit 02
Inverter Unit 03
Compatible Smart String ESS Professionally configured energy storage

Parallel-system capability does not mean every site can support three inverters. Final capacity depends on the network connection, system design, inverter models, battery configuration and applicable electrical requirements.

Models and technical specifications

Three output options.
One shared hybrid platform.

Compare the iStore 10kW, 15kW and 25kW three-phase hybrid inverter models across solar input, battery connectivity, AC output and operating performance.

Your accredited installer can confirm the appropriate model, solar-array configuration and battery-storage design for your property.

Model 01 3Φ Three phase
Rated output 10kW
Recommended maximum PV 25kWp
IS-HYB-10000-3PH
Model 02 3Φ Three phase
Rated output 15kW
Recommended maximum PV 37.5kWp
IS-HYB-15000-3PH
Model 03 3Φ Three phase
Rated output 25kW
Recommended maximum PV 62.5kWp
IS-HYB-25000-3PH
Technical comparison

10kW, 15kW and 25kW three-phase models

Hybrid Battery ready IP66
Swipe to compare models
Specification 10kW model IS-HYB-10000-3PH 15kW model IS-HYB-15000-3PH 25kW model IS-HYB-25000-3PH
▦ Solar input
Recommended maximum PV power 25,000Wp 37,500Wp 62,500Wp
Maximum input voltage 1,100V 1,100V 1,100V
MPPT operating voltage range 200-1,000V 200-1,000V 200-1,000V
Full-load MPPT voltage range 370-800V 410-800V 530-800V
Start-up voltage 200V 200V 200V
MPPT trackers 2 2 2
Maximum PV inputs 4 4 4
Maximum input current per MPPT 30A two strings
20A one string		 30A two strings
20A one string		 30A two strings
20A one string
▭ Battery connection
Compatible iStore battery capacity 5-60kWh 5-60kWh 5-60kWh
Battery operating voltage range 600-980Vdc 600-980Vdc 600-980Vdc
Maximum charging power 21kW single string
25kW two strings		 21kW single string
25kW two strings		 21kW single string
25kW two strings
Maximum battery discharge power 9,999W 16,500W 25,000W
Battery terminals 2 2 2
ϟ AC output
Rated output power 9,999W 15,000W 25,000W
Maximum active power 9,999W 16,500W 27,500W
Maximum apparent power 9,999VA 16,500VA 27,500VA
Maximum output current at 400Vac 15.2A 25.2A 42.0A
Rated output voltage 220/380, 230/400
or 240/415Vac		 220/380, 230/400
or 240/415Vac		 220/380, 230/400
or 240/415Vac
Grid connection 3W/N+PE 3W/N+PE 3W/N+PE
✣ Performance and general data
Maximum efficiency 98.4% 98.4% 98.4%
European weighted efficiency 97.7% 98.0% 98.2%
Cooling method Smart Air Cooling Smart Air Cooling Smart Air Cooling
Operating temperature -25 to +60°C -25 to +60°C -25 to +60°C
Maximum operating altitude 4,000m 4,000m 4,000m
Degree of protection IP66 IP66 IP66
Communication RS485, integrated WLAN
Optional Ethernet		 RS485, integrated WLAN
Optional Ethernet		 RS485, integrated WLAN
Optional Ethernet
Dimensions 546 × 460 × 228mm 546 × 460 × 228mm 546 × 460 × 228mm
Weight 21kg 21kg 21kg
Maximum paralleled inverters Up to 3 Up to 3 Up to 3
✿
Long-term product support

10-year parts and labour warranty

Plus a complimentary two-year parts-only extension, subject to the applicable warranty terms and eligibility requirements.

Official product documents
▤ Technical specifications ▣ Product catalogue ✓ Warranty conditions

Specifications are subject to product configuration, applicable network requirements and change without notice. Refer to the current technical documentation and an accredited installer when designing the system.

Frequently asked questions

Three-phase
hybrid inverter
questions.

Understand model selection, solar capacity, battery storage, monitoring and system design before planning your three-phase energy system.

✣
Professional system design

Every property is different.

An accredited installer can confirm your electricity connection, appropriate inverter model and final solar-array configuration.

▦ Review specifications
01 Which inverter model is right for my property?

Model selection depends on your electricity connection, proposed solar-array capacity, battery-storage requirements, network export limits and expected energy demand. An accredited installer can assess these requirements and recommend the appropriate 10kW, 15kW or 25kW model.

02 How much solar-panel capacity can each model support?

The recommended maximum PV capacity is 25kWp for the 10kW model, 37.5kWp for the 15kW model and 62.5kWp for the 25kW model. Final panel capacity depends on string design, electrical limits, site conditions and applicable network requirements.

03 What does up to 250% PV capacity mean?

It means the recommended maximum solar-array capacity can be up to 250% of the inverter’s rated AC output. A properly designed larger array may improve energy generation during mornings, afternoons and periods of lower solar irradiance.

04 Can the inverter connect to an iStore battery?

Yes. The range is designed for compatible iStore Smart String ESS battery storage from 5-60kWh. Battery configuration, usable capacity and charge performance depend on the selected modules and professionally designed system.

05 Can multiple inverters operate together?

Up to three compatible inverters can be configured in parallel with a compatible Smart String energy-storage system. Final system capacity and configuration remain subject to the current product documentation, network connection and professional system design.

06 Can I monitor solar and battery performance remotely?

Yes. Integrated WLAN supports connection to the compatible iStoreHome monitoring platform. Available information can include solar generation, property consumption, battery activity, operating status and system events when the required meters and compatible equipment are installed.

07 Can the inverter be installed outdoors?

The inverter has an IP66-rated enclosure for protection against dust and water ingress. Installation location, clearances, ventilation and environmental exposure must still comply with the current installation documentation and applicable electrical requirements.

08 What warranty applies to the inverter?

The inverter is supported by a 10-year parts and labour warranty, plus a complimentary two-year parts-only extension subject to the applicable warranty terms, product eligibility and installation requirements.

Ready to plan your system?

Bring more power
and battery storage together.

Speak with iStore about the 10kW, 15kW and 25kW three-phase hybrid inverter range and get connected with the right information for your energy project.

Enquire about this range → ▦ Review specifications
Prefer to speak with our team? 1300 552 619
Designed for 3Φ Three-phase properties
Output range 10-25kW
Solar capacity Up to 62.5kWp
Battery capacity 5-60kWh
Model options 3
⚑
Australian-owned Home energy product range
✿
10-year warranty Parts and labour coverage
◉
Local product support Knowledgeable Australian team
TOP Call Now Button
