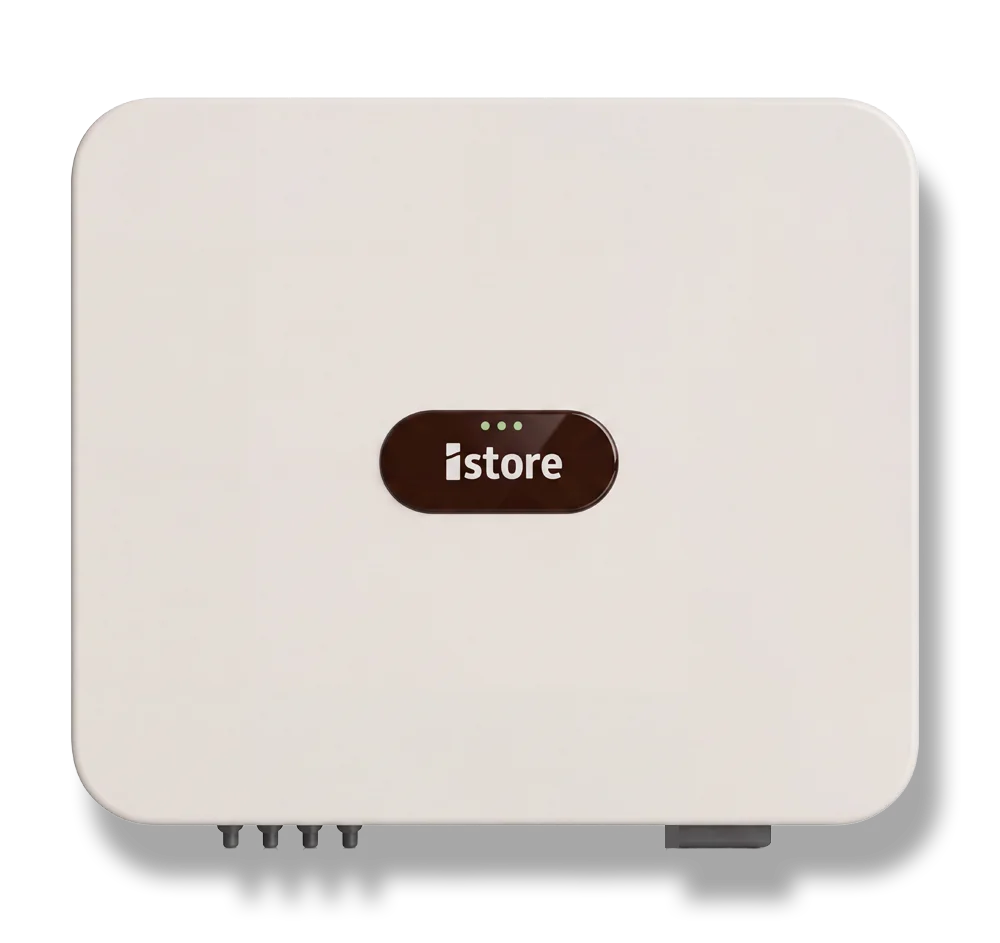

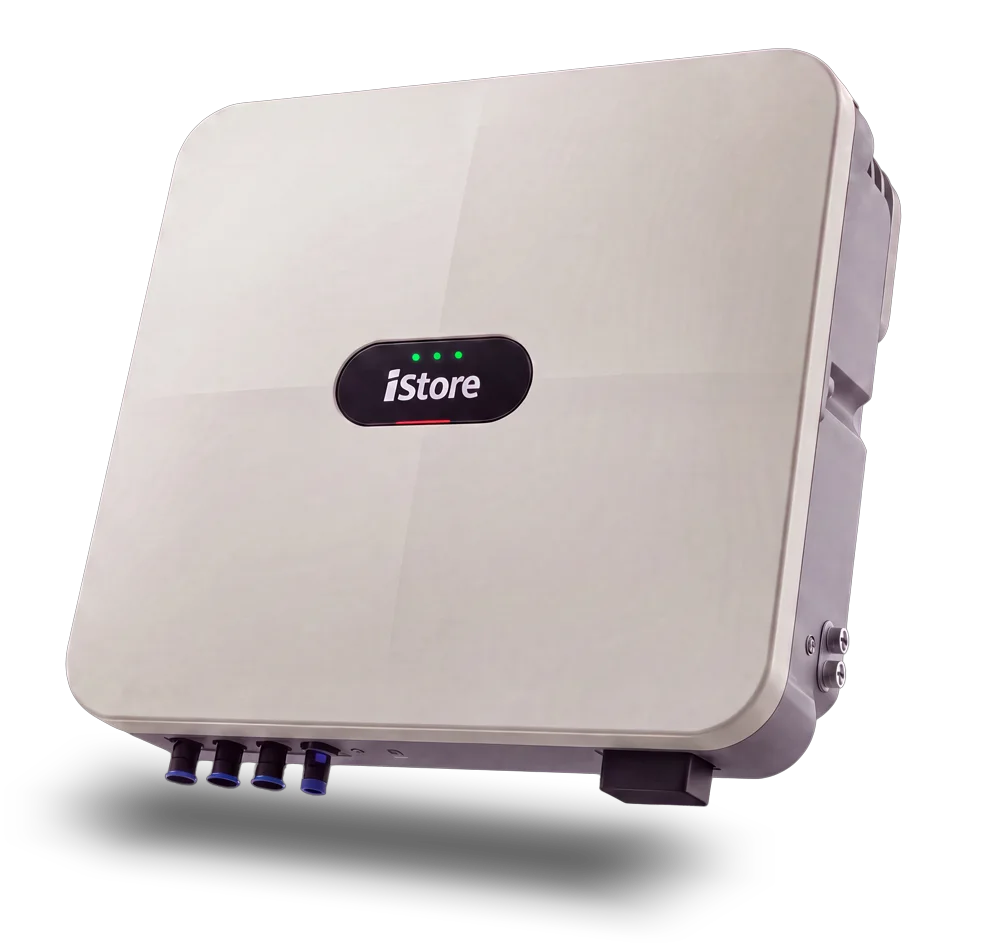

10kW single-phase hybrid solar inverter

More solar.
More storage.
Smarter power.

Bring high-capacity solar generation, compatible battery storage and intelligent energy management together with iStore’s advanced 10kW single-phase hybrid inverter.

9.999kW rated output Three MPPT trackers 10-year warranty
Explore the inverter View specifications
1Φ Single phase iStore 10kW single-phase hybrid solar inverter
MPPT 1 MPPT 2 MPPT 3
IS-HYB-10000-1PH
25kWp Maximum PV power
10kW Maximum battery charge
98.1% Maximum efficiency

High-capacity single-phase energy

More capability for homes
that remain single phase.

The iStore 10kW hybrid inverter brings higher-capacity solar generation, compatible battery storage and intelligent energy management together through a single-phase architecture.

With three MPPT trackers and battery-ready hybrid technology, it provides greater flexibility for professionally designed residential solar and storage systems.

High-capacity single-phase output

Delivers 9,999W of rated output through a single-phase grid connection, subject to the property’s electrical capacity, system design and applicable network approval.

Three independent MPPT trackers

Three PV inputs give an installer greater flexibility to manage separate solar strings or roof orientations while remaining within the inverter’s operating limits.

Battery-ready hybrid technology

Connect an appropriately configured 5-60kWh iStore ESS battery system, with maximum battery charging capability of up to 10kW.

Three MPPT solar design

Three solar inputs.
More ways to use your roof.

Three independent MPPT trackers give an accredited installer greater flexibility when designing solar across separate strings, roof orientations or differing operating conditions.

With maximum supported PV power of 25kWp, the inverter can accommodate more solar-panel capacity than its rated AC output, helping a properly designed system generate useful energy across more of the day.

Three independent trackers

Each MPPT channel manages its connected PV string independently within the inverter’s specified voltage and current limits.

Flexible array configuration

Separate inputs can help accommodate different roof areas or panel orientations as part of a professionally engineered solar-array design.

Greater generation opportunity

Additional panel capacity can support stronger generation during mornings, afternoons and periods of lower solar irradiance.

40–560V MPPT operating range
16A Maximum input per MPPT
50V Start-up voltage
Solar-array potential Designed to accommodate more PV
25kWp Maximum supported PV power
Inverter rating 10kW class
PV array capacity Up to 250%
01
Solar input MPPT 1

Independent tracking

02
Solar input MPPT 2

Independent tracking

03
Solar input MPPT 3

Independent tracking

All PV strings must remain within the inverter’s maximum voltage, current and system-design requirements.

Battery-ready hybrid performance

Store more solar.
Use it when your home needs it.

Connect compatible iStore battery storage to capture surplus solar generation and make that stored energy available for later use.

With up to 10kW maximum battery charging power and 9.999kW maximum discharge power, the inverter is designed to support higher-capacity residential energy systems.

Compatible energy storage Built for the iStore ESS battery system
Battery ready
Compatible storage capacity
5-60 kWh
Final usable capacity depends on the connected battery configuration.
Solar generation
Hybrid control
Battery storage
Maximum charge power
10 kW
Energy into battery
Maximum discharge power
9.999 kW
Energy from battery
Battery operating range 350–600Vdc
Flexible storage capacity

Compatible with 5-60kWh battery systems

Configure compatible iStore ESS storage around the household’s energy requirements and professionally designed system capacity.

01
High-power energy transfer

Up to 10kW battery charging power

High-capacity charging helps a compatible battery system capture more available solar energy when generation exceeds household demand.

02
Coordinated hybrid operation

Solar, battery and household energy working together

Intelligent hybrid management coordinates available solar, compatible storage and household consumption through one inverter.

03

Storage designed around your home: Final battery capacity, charge and discharge performance depend on the connected battery configuration, operating conditions and accredited installer system design.

Intelligent performance and protection

Smarter protection.
Dependable everyday performance.

Intelligent safety functions help protect the solar system while advanced operating technology supports reliable energy production.

Active arc-fault protection, shade-mitigation technology, IP66 enclosure protection and intelligent cooling work together within the inverter.

Active electrical safety

AI-powered arc-fault protection

Intelligent AFCI technology helps identify potentially dangerous electrical arcing within the solar system and initiate a protective response.

01
Shade-mitigation technology

Designed to recover more usable solar energy

Multi-peak MPPT scanning helps identify a more productive operating point when partial shade creates multiple power peaks across a PV string.

02
Installation durability

IP66-rated enclosure

Protection against dust and powerful water jets supports flexible indoor or outdoor installation when positioned in accordance with the installation requirements.

03
Intelligent thermal management

Smart Air Cooling

Intelligent cooling helps regulate inverter temperature during higher-power operation while maintaining typical operating noise below 40dB.

04
Integrated system protection Intelligence working in the background
Active
Integrated Protection and performance
Arc-fault protection AI AFCI
Shade mitigation Multi-peak scan
Enclosure rating IP66
Thermal management Smart cooling
Typical operating noise <40dB
Maximum efficiency 98.1%
Enclosure protection IP66

Protection functions complement correct system design, installation and maintenance by an accredited solar installer.

Correct installation remains essential: Product protection ratings do not replace the siting, clearances, electrical protection, inspection and maintenance requirements specified in the installation manual and applicable Australian standards.

Monitoring, communication and backup

See your energy.
Stay connected to your system.

Connected monitoring provides greater visibility over solar generation, battery activity and household energy flow.

Built-in WLAN, optional Ethernet connectivity and RS485 communication support integration with compatible monitoring equipment and professionally designed energy systems.

Connected energy monitoring Home energy overview
System online
Live system visibility Energy working across your home
Solar Generating
Hybrid inverter Managing energy
Home Using energy
Battery Charge visibility
Solar generation Current and historical data
Household energy Consumption visibility
Battery activity Charging and discharge data
System status Operating information
Communication options
Built-in WLAN
Optional Ethernet
RS485
Dashboard elements are a visual representation of supported monitoring functions. Available data depends on installed system components and configuration.
Connected monitoring

Energy information within easier reach

View supported solar-generation, household-consumption and battery-performance information through the compatible monitoring platform.

01
Flexible communication

WLAN, Ethernet and RS485 connectivity

Built-in WLAN supports wireless connection, while optional Ethernet hardware and RS485 communication provide additional integration options.

02
System awareness

Monitor performance and operating status

Connected system information can help homeowners and service professionals understand performance and identify reported operating events.

03
Optional backup integration

Prepare selected circuits for an outage

Optional

Backup functionality can be incorporated using a compatible Huawei SmartGuard-63A-AUS0, compatible battery storage and an appropriately designed electrical system.

Compatible battery
SmartGuard
Designed backup loads
Backup operation is not provided by the inverter alone. Final capability depends on compatible hardware, battery condition, available stored energy, circuit selection and installer design.
Model and technical specifications

One powerful model.
All the technical detail.

The iStore 10kW single-phase hybrid inverter combines high-capacity solar input, compatible battery storage and intelligent energy management in one residential inverter.

Your accredited installer can confirm the appropriate solar-array, battery, backup and electrical configuration for your property.

10kW single-phase hybrid inverter IS-HYB-10000-1PH
Single phase
Rated inverter output
9.999 kW
Maximum supported PV power
25 kWp
Compatible battery capacity
5-60 kWh
Maximum efficiency
98.1 %
Three independent MPPT trackers Battery-ready hybrid architecture IP66 enclosure protection
Technical comparison

iStore 10kW single-phase hybrid inverter

Hybrid Battery ready IP66 Single phase
Solar input
Recommended maximum PV power 25,000Wp
Number of MPPT trackers 3
Number of PV inputs 3
MPPT operating voltage range 40-560V
Start-up voltage 50V
Maximum input current per MPPT 16A
Maximum short-circuit current per MPPT 20A
Battery connection
Compatible iStore battery capacity 5-60kWh
Battery operating voltage range 350-600Vdc
Maximum battery charging power 10,000W
Maximum battery discharge power 9,999W
Supported battery stacks Up to 2
AC output
Rated output power 9,999W
Maximum apparent power 9,999VA
Rated output voltage 230Vac
Maximum output current 45.5A
Grid connection Single phase
Performance and general data
Maximum efficiency 98.1%
European weighted efficiency 97.5%
Cooling method Smart Air Cooling
Typical operating noise <40dB
Degree of protection IP66
Communication WLAN, optional Ethernet and RS485
Dimensions including bracket 425 × 376.5 × 150mm
Weight 15kg
Long-term product support

10-year parts and labour warranty

Plus a complimentary two-year parts-only warranty extension, subject to the applicable warranty terms and conditions.

Official product resources
Technical specifications User manual Product support

Specifications are based on current product documentation and may be updated without notice. Refer to the latest official technical documentation and installation manual before system design or installation.

Frequently asked questions

10kW single-phase
hybrid inverter questions.

Understand solar capacity, battery compatibility, monitoring, installation and optional backup functionality before planning your home energy system.

Professional system design

Every property is different.

An accredited solar installer can assess your electricity connection, switchboard, available roof space, battery requirements and final system configuration.

Review specifications
01 What is a 10kW single-phase hybrid inverter?

A single-phase hybrid inverter converts energy generated by a solar array into electricity that can be used in a single-phase home. Its hybrid architecture also allows compatible iStore battery storage to be integrated into the solar energy system.

02 Is a 10kW single-phase inverter suitable for every home?

No. Suitability depends on the property’s electricity connection, distributor requirements, export limits, switchboard capacity, solar-array design and expected energy consumption. An accredited installer must confirm whether this inverter is appropriate for the property.

03 Does 25kWp of supported solar capacity mean 25kW of AC output?

No. The inverter supports up to 25,000Wp of connected PV panel capacity, subject to system-design requirements, but its rated AC output remains 9,999W. Additional panel capacity can help improve generation during mornings, afternoons and periods of lower solar irradiance.

04 What battery capacity can be connected?

The inverter supports compatible iStore battery storage from 5-60kWh. Final capacity, stack configuration and operating performance depend on the connected battery system and accredited installer design.

05 Can the inverter be installed outdoors?

The inverter has an IP66-rated enclosure that provides protection against dust and powerful water jets. Outdoor installation remains subject to the location, clearances, environmental conditions and siting requirements specified in the installation manual.

06 Can I monitor solar and battery performance remotely?

Yes. Built-in WLAN supports connection to the compatible monitoring platform. Available information can include solar generation, household consumption, battery activity and system operating status, depending on installed equipment and configuration.

07 Can the system provide backup power during an outage?

Optional backup functionality can be incorporated using compatible iStore battery storage, a compatible Huawei SmartGuard-63A-AUS0 and an appropriately designed electrical system. The inverter does not provide backup operation by itself.

08 What warranty applies to the inverter?

The inverter includes a 10-year parts and labour warranty, plus a complimentary two-year parts-only warranty extension, subject to the applicable iStore warranty terms, registration requirements and conditions.

Ready to plan your system?

Bring more solar
and battery storage together.

Speak with iStore about the 10kW single-phase hybrid inverter and get connected with the right information for your home energy project.

Enquire about this inverter Review specifications
Prefer to speak with our team? 1300 552 619
