iStore home battery

Store more solar.
Use it when it matters.

The iStore 5000ES is a modular home battery designed to work seamlessly with compatible iStore hybrid inverters. Start with the capacity you need today and expand as your household energy requirements grow.

Explore the battery Get a quote

Modular capacity 5-60 kWh

iStore 5000ES modular home solar battery

5–60 kWh Expandable modular storage

100% depth of discharge More usable stored energy

Flexible compatibility Single and three-phase systems

Expandable capacity 5–60 kWh

Ultra-slim profile Only 150mm deep Designed to preserve valuable clearance

Flexible home energy storage

Modular storage designed around your home.

Every household uses energy differently. The iStore battery gives you the flexibility to choose a storage capacity suited to your home today, with room to expand as your energy needs change.

Its stackable design allows additional battery modules to be incorporated into a compatible system without replacing the entire battery. This makes it easier to prepare for future additions such as an electric vehicle, a larger solar system or increased household electricity use.

Start with the right capacity

Select a battery configuration based on your current solar generation, electricity use and energy goals.

Expand as your needs grow

The modular system provides a practical pathway to increased storage capacity when your household requires it.

Designed for flexible installation

Its ultra-slim 150mm profile helps preserve valuable clearance through garages, walkways and narrow installation areas.

01 Starting capacity

5 kWh

Compact storage for households with lower evening energy use.

02 Everyday storage

10 kWh

Additional stored solar for evening use and overnight essentials.

03 Popular configuration

15 kWh

Greater flexibility for larger homes and higher evening demand.

04 High capacity

30 kWh

Substantial storage for energy-intensive homes and larger solar systems.

05 Maximum capacity

60 kWh

Maximum supported storage for substantial household energy requirements.

Available capacity and system configuration are subject to compatible equipment, installation requirements and site assessment.

Protection by design

Safety engineered
at every level.

From stable LFP battery chemistry to intelligent monitoring and built-in emergency protection, the iStore battery is designed to protect your home and stored energy.

Four levels of protection Cell, structural, electrical and emergency safety

Cell-level protection

Stable LFP chemistry

Lithium iron phosphate battery cells provide a stable foundation for dependable residential energy storage.

Intelligent monitoring

Eight temperature sensors

Multiple sensors continuously monitor temperature conditions within each battery module.

Electrical protection

Galvanic isolation

Comprehensive electrical isolation adds another protective barrier between the battery system and connected equipment.

Emergency protection

Built-in fire extinguisher

Each battery module includes automatic fire-extinguishing protection as a final emergency safety measure.

More than a battery A complete layered safety system.

Every level works together to monitor operating conditions, isolate electrical risks and provide emergency protection.

System online Home energy

Live

Solar generation 6.4 kW

Home consumption 3.2 kW

Battery charging 3.2 kW

Battery level 78%

Solar supplied 100%

Grid import 0.0 kW

Smart energy visibility

See your energy.
Understand your home.

Follow solar generation, household consumption and battery status through the compatible iStore monitoring platform.

Energy at a glance

View how energy moves between your solar system, home, battery and electricity grid.

Monitor from anywhere

Check system performance and battery status from a compatible mobile monitoring app.

Fast system commissioning

Compatible battery equipment is automatically detected, helping simplify system setup and commissioning.

Backup power compatibility

With a compatible iStore inverter and backup equipment, stored energy can support selected essential circuits during an outage.

Monitoring features, backup capability and displayed information depend on the connected inverter, communications equipment and installed system configuration.

Technical overview

The details that
make the difference.

Engineered for flexible residential installation, the iStore battery combines durable outdoor protection, quiet operation and compatibility across selected single-phase and three-phase iStore inverter systems.

Download technical specifications View user manual

Protection rating IP66 Designed for indoor or suitable outdoor installation

Operating temperature −20°C to +55°C Dependable operation across a wide temperature range

Noise emission <29 dB Quiet natural-convection cooling with no cooling fan

Cell technology LiFePO₄ Stable lithium iron phosphate battery chemistry

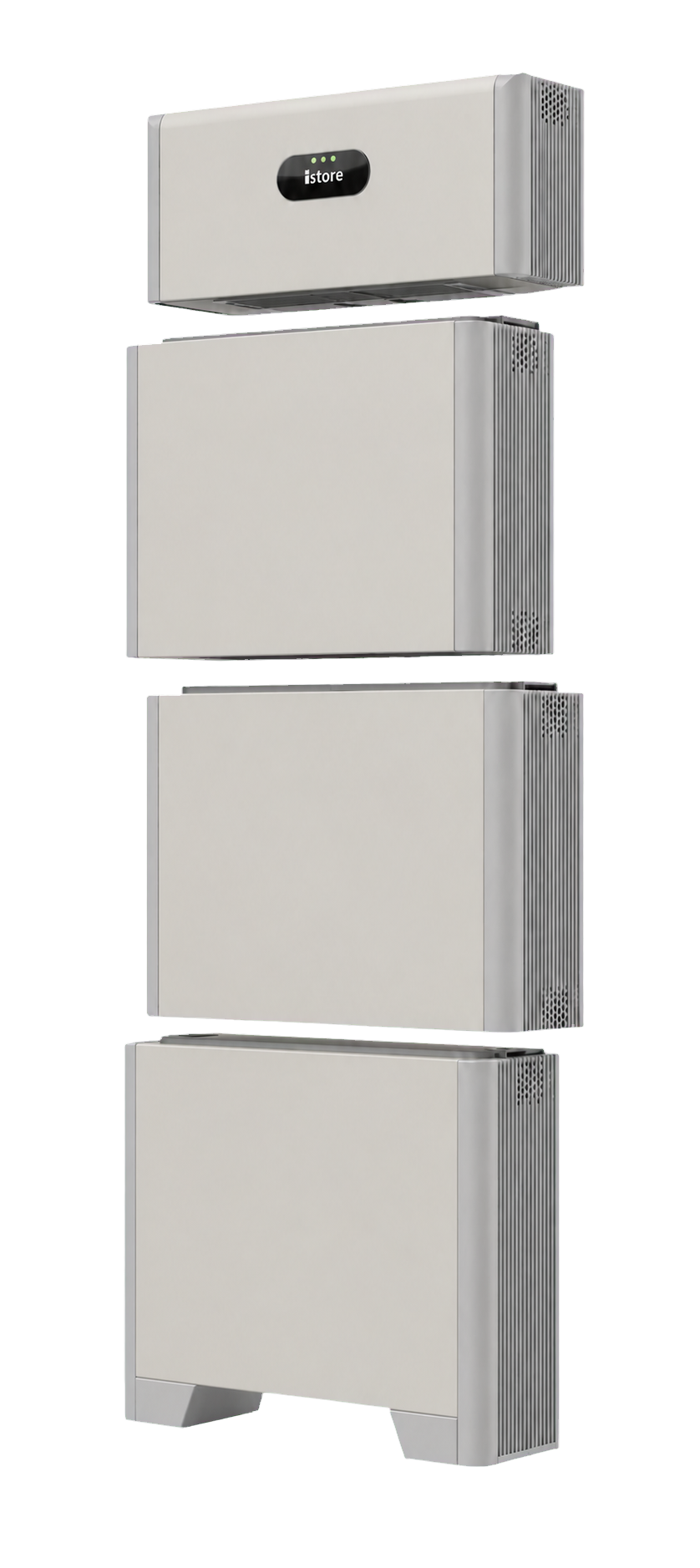

Individual battery stack configurations

Choose the foundation.
Expand when required.

Each stack combines one power-control module with up to three 5 kWh battery modules.

01 IS-BATT-5000-S0

5 kWh

Usable battery energy

Battery modules: 1
Dimensions: 670 × 150 × 600 mm
System weight: 63.8 kg

02 IS-BATT-10000-S0

10 kWh

Usable battery energy

Battery modules: 2
Dimensions: 670 × 150 × 960 mm
System weight: 113.8 kg

Maximum single stack

03 IS-BATT-15000-S0

15 kWh

Usable battery energy

Battery modules: 3
Dimensions: 670 × 150 × 1320 mm
System weight: 163.8 kg

System compatibility One battery platform. Multiple system possibilities.

Compatible with selected residential single-phase and three-phase iStore hybrid inverters, with parallel battery configurations supporting up to 60 kWh where compatible.

Single phase Three phase Up to 60 kWh

System capacity, parallel operation and available functionality depend on the connected inverter model and final installed configuration. Dimensions are shown as width × depth × height.

Take the next step

Ready to put more of
your solar to work?

Tell us about your home, existing solar system and energy goals. We’ll help you explore the right iStore battery configuration for your household.

Start your battery enquiry Call 1300 552 619

For homeowners

Explore storage options for a new or existing solar system.

For solar professionals

Access product, compatibility and technical support.
